Product Description
Welding bellows is a new type of component emerging at home and
abroad in recent years. It can be used as a sensitive component,
sealing component, isolation medium, pipeline connection and
temperature compensator. It in addition to pressure resistance,
temperature resistance, corrosion resistance, good sealing and
other advantages, compared with the traditional shape of bellows
there are two outstanding advantages: large deformation, long life.
Schematic diagram
Its composition is composed of two formed hollow diaphragm with
concentric circle for inner edge welding to form a diaphragm pair,
and then a plurality of diaphragm pairs stacked together for outer
edge welding to form a corrugated section, and then at both ends
and end plate metal welding combined into a bellows group, so that
it can be reciprocated with other moving parts according to the
external needs
Parameters
- Temperature: -196-450℃
- Medium: Vacuum/Gas
- Pressure: -0.1Mpa
- Size:From DN5-DN300

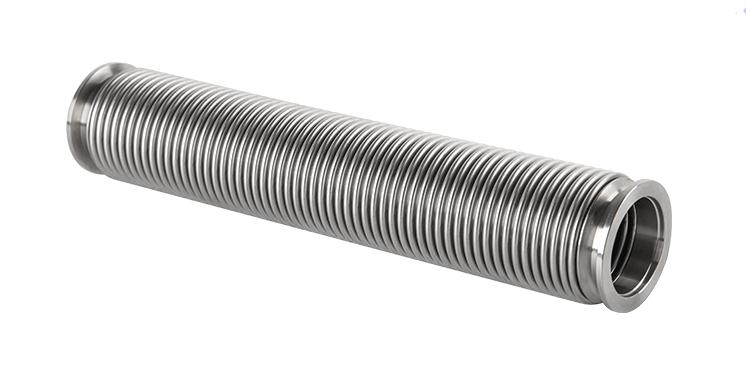

Detailed Images
Company Profile
DRACHMA (ZHANGJIAGANG) MATERIAL CO.LTD has two main production
plants. Zhangjiagang plant is responsible for the rough forming of
workpieces, mainly forging process; While Hangzhou plant is mainly
responsible for precision machining, welding and inspection of
products. We implement this layout mainly to use the industrial
advantages of each region to achieve maximum economic benefits.
Traditional processing enterprises often do not have such ability,
the lack of blank forming ability is unable to achieve the optimal
use of materials, resulting in excessive processing allowance, long
cycle, high cost. Zhangjiagang is located in the southern jiangsu
province, which has the strongest forging capacity in China. It has
a good supporting industry and can realize the diversified
production of forging and pressing blanks. Thanks to this, the
product cycle of our company is faster, the cost performance is
higher, and the forging products have better mechanical properties
than the products directly processed by rod or plate.
In addition, our company has strong welding ability, which can weld
and assemble parts to achieve system delivery. We adopt the mode of
automatic robot welding and manual precision welding to achieve
flexibility and high quality.

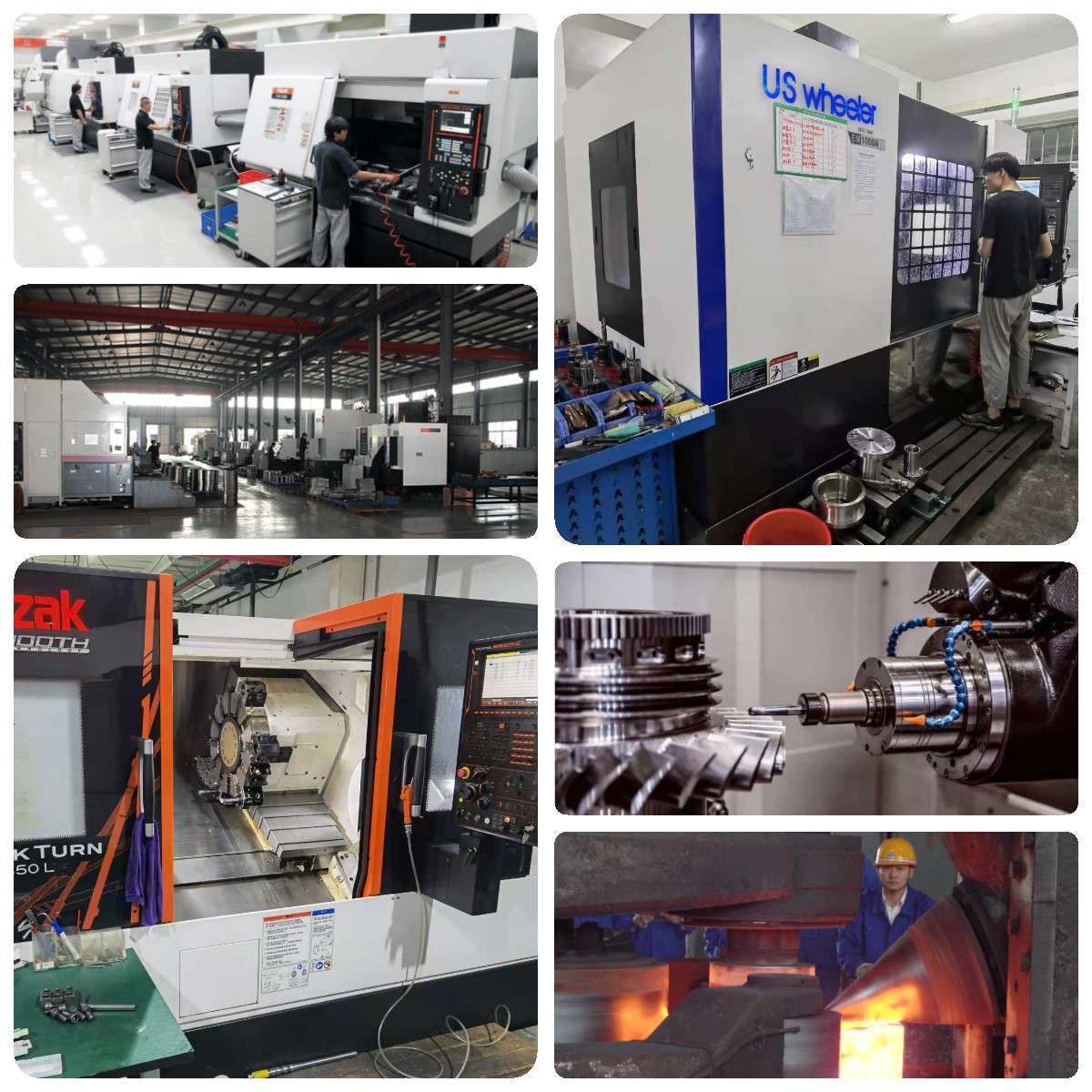

Equipment List
| Name | Type | Quantity | Processing range | Precision(um) |
| CNC | MAZAK(QTN350L) | 1 | φ720*1250 | 3 |
| CNC | MAZAK(QTN250L) | 1 | φ580*1500 | 3 |
| Turn milling center | MAZAK(QTN250M) | 2 | φ580*600 | 3 |
| CNC | Newway(NL-634SC) | 1 | φ630*1000 | 5 |
| CNC | FUJI(TN-36) | 2 | φ350*290 | 3 |
| CNC | HAAS SL30 | 1 | φ620*750 | 3 |
| CNC | MAZAK FJV200 | 1 | 560X*410Y*560Z | 3 |
| CNC | LGMAZAK NEXUS160AN-2PC | 1 | 560X*410Y*660Z | 10 |
| CNC | WHEELEL | 2 | 560X*410Y*660Z | 5 |
| Welding | Miller | 1 | | |
Material List we can deal
Stainless steel :304/1.4307 316/1.4404 321/1.4541 316Ti/1.4571 317L
904L F44 NO6625 UNS718
440A/B/C 431 446 F6a F11 F22 F91
Duplex steel : F51 F60 F53 F55
Aluminum : 6061 6063 7075 5052
